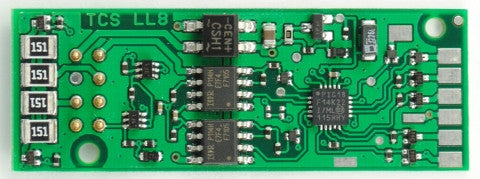

1343 TCS Train Control Systems / LL8 Decoder (SCALE=HO) Part # 745-1343

The 745-1343 LL8 Train Control Decoder is designed for HO Scale models, especially LifeLike Proto 2000 ones. It features a Direct-Plug (8-Pin NMRA) interface. Dimensions are 1.989' x 0.694' x 0.134' (50.51mm x 17.64mm x 3.4mm). It has a 1.0/2.0 Amp continuous/peak current, 8 total functions with a 100 mA function rating, 8 12V outputs, and 2 1.5V bulb outputs. It comes with a built-in circuit for 1.5V bulbs of forward and reverse headlights. Key features include Back EMF Load Compensation for great slow speed control, Quiet Drive for noise-free motor performance, DC Mode detection, RailCom® for communication with the command station, Variable Momentum for custom curves, a 1.5 Volt power supply for bulbs, support for incandescent bulbs, Function Remapping, 20 programmable lighting effects, Dimmable Brightness, Decoder Lock, Airwire™ compatibility, and user-loadable speed tables.

Using the 745-1343 LL8 Train Control Decoder is easy. First, plug it in using the Direct - Plug (8 - Pin NMRA) interface. It will automatically detect DC power, but you can also configure the lighting effects for DC. To make your train move smoothly, use the Variable Momentum feature to set custom acceleration and deceleration curves. For lighting, choose from 20 programmable effects and adjust the brightness as you like. When programming, remember to lock the decoder to prevent accidental changes. As for maintenance, keep it clean and free from dust. Avoid exposing it to extreme temperatures and moisture. If you have any issues, check the connections and the power supply. This decoder is fully compatible with Airwire™, so you can use it with your Airwire™ system without any problems. Have fun with your HO Scale train model!
