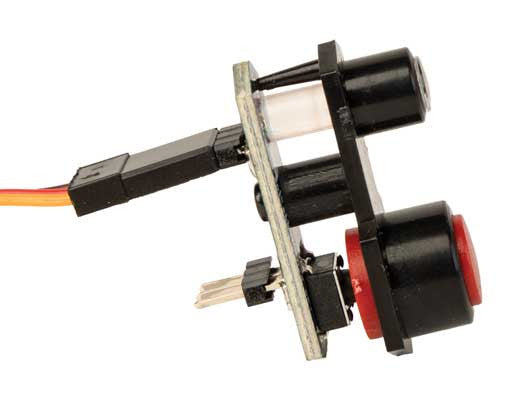

Walthers 942-133 LED Fascia Controller Red - Walthers Layout Control System

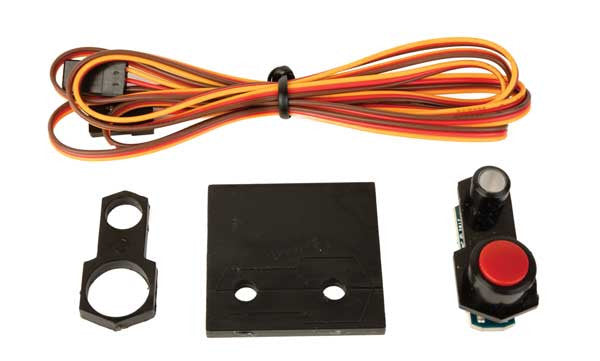

The Walthers Layout Control System offers an affordable and efficient solution for easy turnout control on HO, N, Z, S, and O Scale layouts. This system is highly expandable, allowing it to grow with your layout. It's compatible with both DCC and DC power, as a DCC accessory decoder is built - in to the switch machine. With plug - and - play servo - style wiring and connectors, no soldering is required. You can choose from two styles of cables sold separately to expand your wiring as needed. All items come with user - friendly instructions, and appropriate drilling templates for mounting on your layout or fascia are provided. The Walthers Layout Control System consists of components like a servo - based slow - motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add - on system cabling, a 2 - amp 12V Filtered DC Power Supply, and a three - piece drill set, enabling you to build a complete control system effortlessly. The Walthers Layout Control System Dual Color LED Accessory Controller has several great features. It has a compact design for space - saving installation. The green/yellow LED indicator can be adjusted to match the Switch Machine settings. It operates with a single pushbutton. Complete instructions and a mounting template are included, and it can be used with the Control System Turnout Drill Set (#942 - 140, sold separately). It fits 1/8' or 1/4' (0.3 or 0.6cm) thick panels and comes with a connecting cable that can be easily expanded using the Extension Cable (#942 - 113, sold separately).

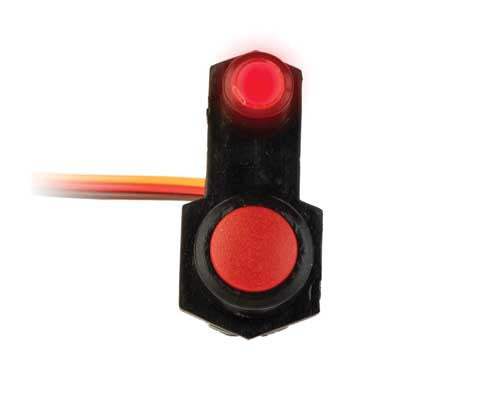

Using the Walthers Layout Control System is a breeze. First, set up the power supply. Make sure to connect it properly to the system components. The 2 - amp 12V Filtered DC Power Supply is your power source for the whole setup. Then, connect the switch machine to the power distribution block. Thanks to the plug - and - play servo - style wiring, you don't need to solder anything. Just match the connectors and you're good to go. The LED Fascia Controller is easy to operate. With a single push of the button, you can control the turnout. Adjust the green/yellow LED indicator to match the switch machine settings according to your preference. When it comes to mounting, use the provided drilling templates. They'll help you place the components accurately on your layout or fascia. For expansion, you can buy the separate cables. The Extension Cable (#942 - 113) can be used to expand the connection of the LED Fascia Controller. And if you want to drill holes for the turnout, get the Control System Turnout Drill Set (#942 - 140). As for maintenance, keep the system clean and free from dust. Check the connections regularly to make sure they're secure. If you're not using the system for a long time, store it in a dry place. Don't forget to follow the safety instructions when handling the power supply. With these tips, you'll enjoy a smooth - running Walthers Layout Control System.
