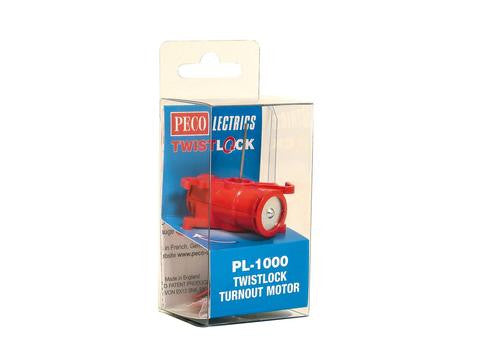

Peco PL-1000 Twistlock Turnout Motor N, HO or O Scale

The Peco PL - 1000 Twistlock Turnout Motor is a top - notch electric solenoid motor designed mainly for operating turnouts in model railways.

TWISTLOCK MOTOR

This TwistLock motor is powered by a standard 16vDC supply and can handle up to 3 amps. It's fully compatible with all PECO turnouts up to O gauge and many other well - known brands. The best part? You don't need to solder wires to the terminals or cut large holes in the baseboard.

Each motor comes with a template. Use it to precisely mark three holes to drill. The two outer holes are for attaching mounting studs under the baseboard. The larger center hole is where the motor's drive pin goes through the turnout's tie bar. Simply twist and lock the motor into place, and it'll stay firmly attached during operation. Every motor also includes an extra operating bar and spacers for the studs, allowing above - board mounting when required.

Dimensions:
Length: 42mm
Hook to Hook: 42mm
Depth: 25mm

Using the Peco PL - 1000 Twistlock Turnout Motor is a breeze. First, power it with a 16vDC supply. Make sure the current doesn't exceed 3 amps. Use the provided template to mark three holes on the baseboard. Drill these holes carefully. Attach the mounting studs to the two outer holes beneath the baseboard. Thread the drive pin of the motor through the larger center hole and the turnout's tie bar. Then, twist the motor to lock it in position. You can use the extra operating bar and spacers for above - board mounting if needed. When using, avoid overloading the motor. Keep it away from moisture and dust. If you notice any unusual noises or malfunctions, stop using it immediately. To maintain the motor, clean it gently with a soft cloth every once in a while. This will help it last longer and work smoothly.
