ESU 50340 Speaker set, Dual 11x15mm, Modular Soundbox kit for 28mm, 20x40mm, 16x35mm (Scale=ALL) 397-50340

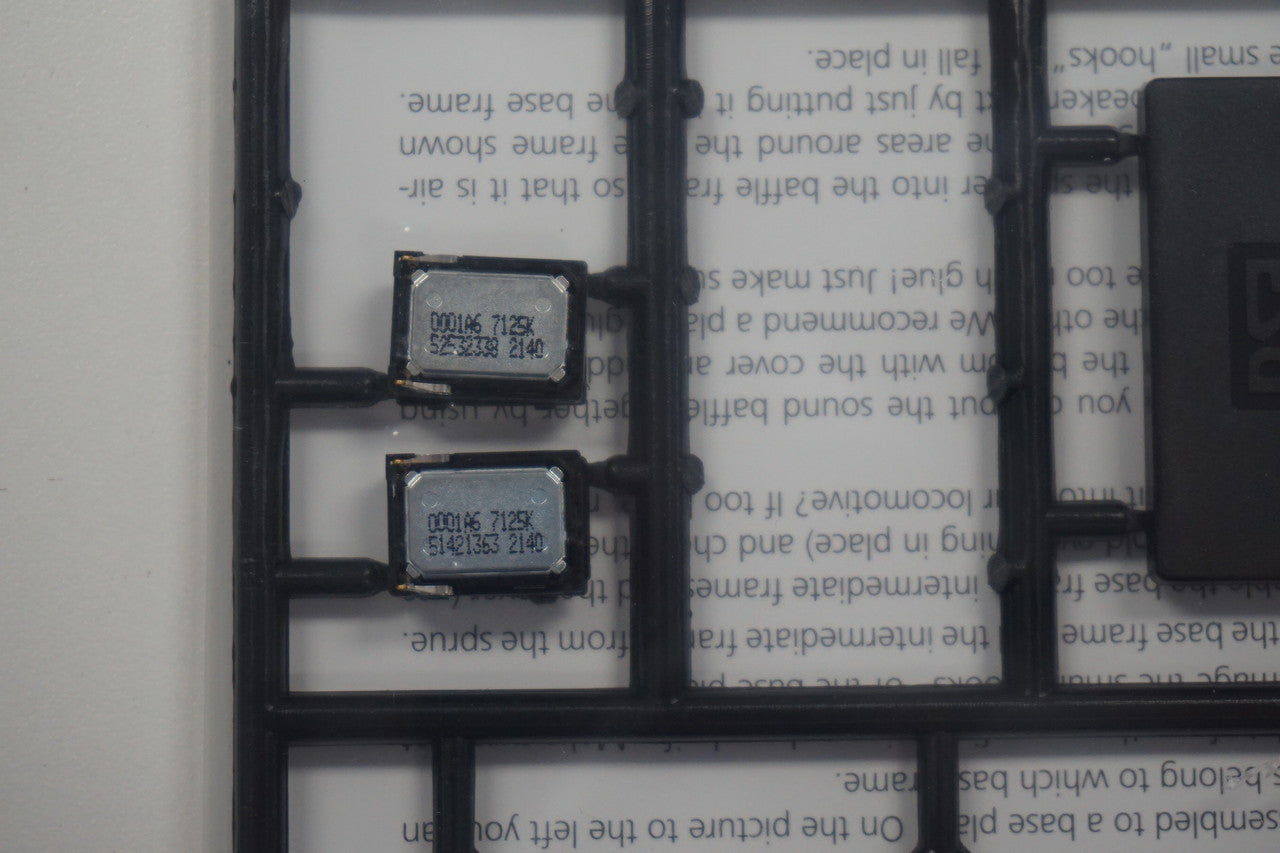

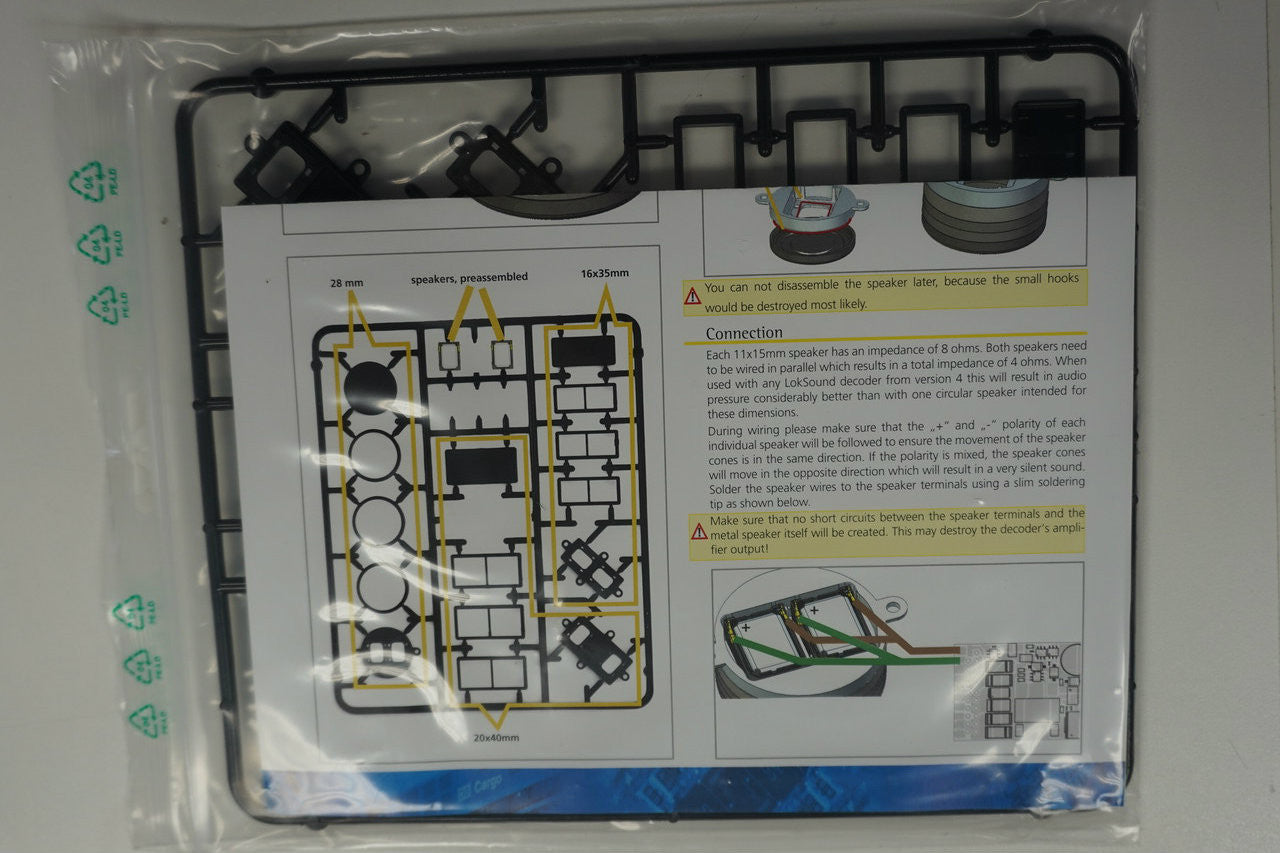

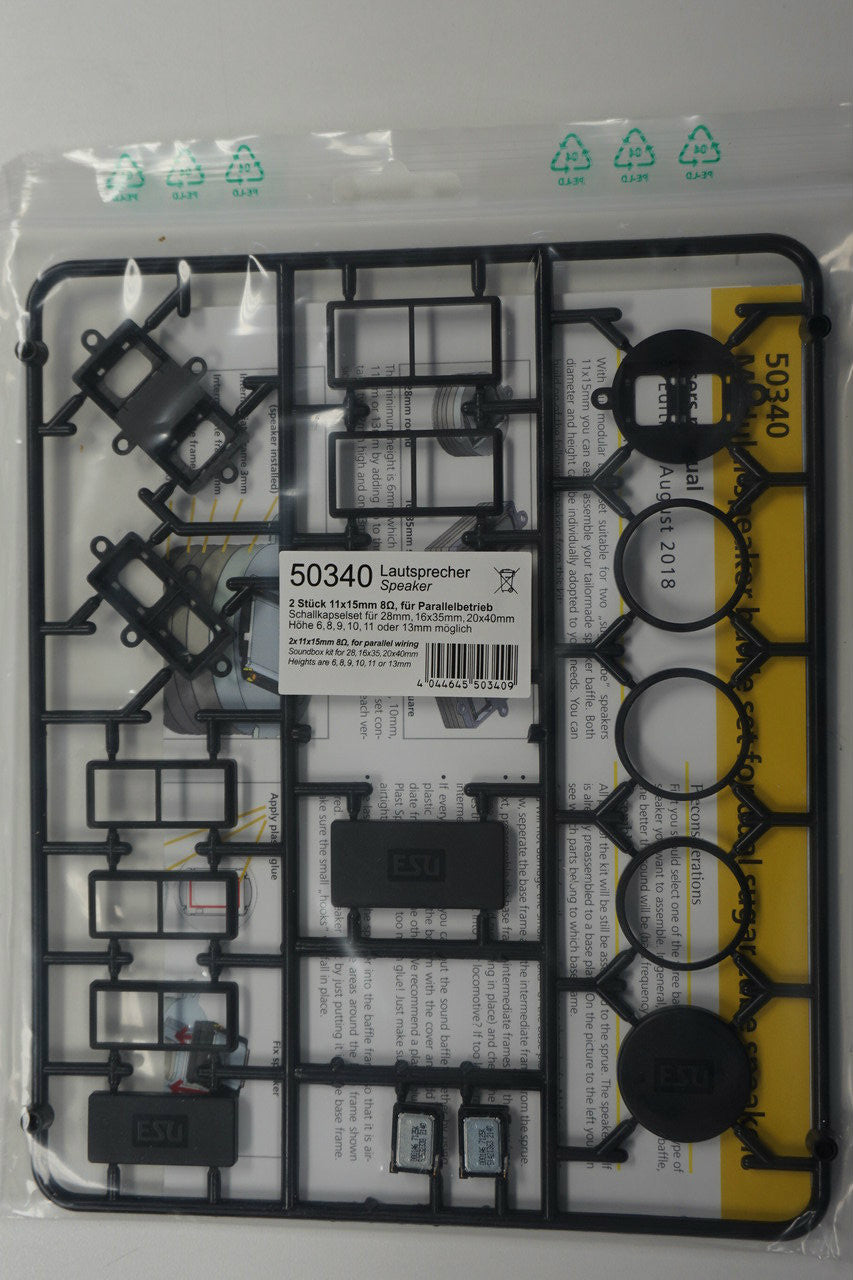

The ESU 50340 is an amazing modular speaker baffle set. It allows you to easily build a custom - made speaker baffle for two miniature speakers. You can adjust both the diameter and height to fit your specific needs. When you wire two speakers in parallel, you'll get strong audio pressure and great sound fidelity. The set comes with popular 11x15mm sugar - cube speakers having 8 Ohm impedance and a sealed mounting plate. First, pick one of the three base frames: a 28mm - diameter circular frame or a rectangular one sized 16x35mm or 20x40mm. After inserting the speakers into the base frame, you can decide the height of the speaker baffle. The minimum height is 6mm, and you can increase it to 8mm, 9mm, 10mm, 11mm, or 13mm by adding up to three intermediate frames (two 2mm - high and one 3mm - high). Just use some plastic - suitable glue to fix them. Remember, a taller speaker baffle means better bass fidelity, so make the most of the available space.

Using this product is easy. First, choose the right base frame according to your speaker type. Then, insert the speakers into the base frame. Next, decide how high you want the speaker baffle to be. You can add the intermediate frames to increase the height as needed. Just use glue for plastic materials to fix the frames together. When handling the speakers, be gentle to avoid damage. Store the set in a dry and cool place to prevent any issues with the plastic parts. Also, make sure the wiring of the speakers is done correctly in parallel for the best sound. If you notice any problems like loose parts or poor sound quality, check the connections and the assembled baffle carefully.
