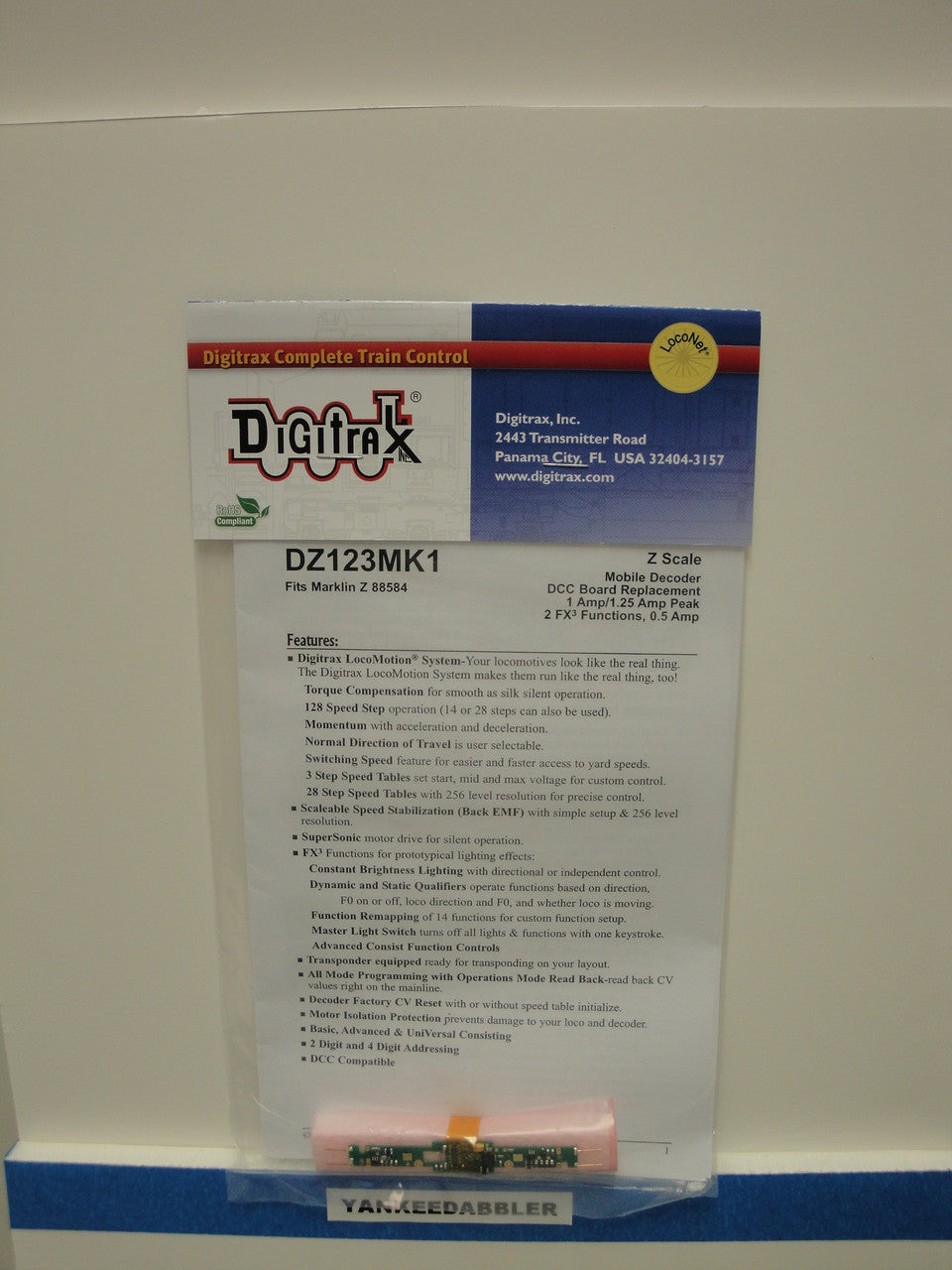

Digitrax DZ123MK1 Board Replacement for Marklin BR 182, 152, ES64 and others; Z Scale

The Digitrax DZ123MK1 is a high - quality board replacement decoder for Marklin Z Scale trains such as the BR 182, 152, ES64 and many others, including the Marklin Z 88584. It comes with a 1 Amp output and 2 FX3 functions. This decoder fits a wide range of Marklin Z Scale models like BR 128, 146.1, 189, 185, ER 20, SBB 482, RH 1012. The motor has a current rating of 1.0 Amp with a 1.25 Amps peak. Its compact size is 0.415” x 2.722” x .0108” (10.541mm x 69.1388mm x .27432mm). It's a board replacement type installation with 2 - 500mA function outputs and FX3 function type from Series 3.

Using the Digitrax DZ123MK1 is quite simple. First, make sure your Marklin Z Scale train is turned off. Then carefully remove the old board and replace it with the DZ123MK1. Connect all the wires as they were connected to the old board. When you turn on the train, the decoder should work right away. As for maintenance, keep it clean from dust. You can use a soft, dry cloth to gently wipe it. If you need to store it, put it in a dry place away from direct sunlight. Be careful when handling the board to avoid static electricity, which might damage it. Also, always refer to the Marklin train's manual for any specific installation details.
