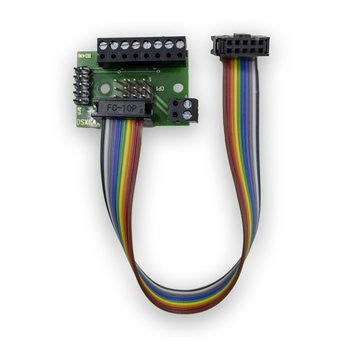

Digitrax DSXC4 Input interconnect board for DS74 All Scales

The Digitrax DSXC4 is an essential input interconnect board designed for the DS74 across all scales. It offers plug - and - play connectivity for DS74 inputs, coming with a ribbon cable that easily plugs into the DS74 10 - pin Input header. You can connect up to 4 DSXCP1 fascia controls. It also features a direct ribbon cable plug - in header to BD4N detectors and an 8 - pin screw terminal plug for optional wire access to 8 input lines.

Using the Digitrax DSXC4 input interconnect board is a breeze. First, connect the ribbon cable that comes with the board to the DS74 10 - pin Input header. This gives you plug - and - play connectivity for the DS74 inputs. You can then add up to 4 DSXCP1 fascia controls. If you need to access the 8 input lines, use the 8 - pin screw terminal plug. For BD4N detectors, just use the direct ribbon cable plug - in header. When it comes to maintenance, keep the board clean and free from dust. Avoid exposing it to extreme temperatures or moisture. If you encounter any issues, check all the connections first to make sure they are secure.
