1333 TCS Train Control Systems / K0D8-B Kato Decoder (SCALE=N) Part # 745-1333

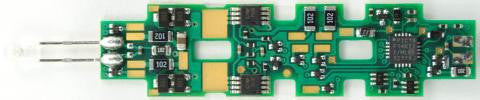

The K0D8-B is a high - performance N - scale drop - in decoder for Kato locomotives, part number 745 - 1333. With an interface type of Drop - In, it has dimensions of 2.139' x 0.538' x 0.068' (54.32mm x 13.67mm x 1.73mm). It features a continuous/peak current of 1.0/2.0 Amp, 8 total functions with a function rating of 80 mA, 6 12V outputs, 7 LED outputs, and 1 onboard LED. Compatible with Kato F3A and F7A locomotives, check the installation pages for a full list. The K0D8 - B comes with a super - bright, 'Sunny White' LED with medium - length leads in the forward direction. It offers multiple advanced features like Back EMF Load Compensation for better speed control, Quiet Drive for noise - free motor performance, DC Mode detection, RailCom® for communication with the command station, Variable Momentum for custom curves, and many more. It also supports LED and incandescent bulbs, allows function remapping, and has programmable lighting effects and dimmable brightness. There's a Decoder Lock to prevent unwanted programming, and it's fully compatible with Airwire™ operation and user - loadable speed tables.

Using the K0D8 - B decoder is straightforward. First, make sure your Kato locomotive is compatible. You can check the installation pages for a full list of supported engines. Install the decoder according to the provided instructions, taking care to connect it properly. When it comes to programming, you can use the function remapping feature to control lighting functions with buttons 0 through 12. You can also set custom speed curves and speed limits using the user - loadable speed tables. There are 20 different programmable lighting effects to choose from, and you can configure multiple brightness levels for your LEDs or incandescent bulbs. Note that the K0D8 line has different lighting configurations, so pay close attention to compatibility. The K0D8 - B has a super - bright 'Sunny White' LED with medium - length leads in the forward direction. To maintain your decoder, keep it clean and free from dust. If you're not using it for a long time, store it in a dry place. When in DC mode, the decoder will automatically detect DC power, and you can also configure the lighting effects. Just be careful when programming to avoid accidentally activating the decoder lock. Overall, enjoy the enhanced performance and features this decoder brings to your Kato locomotives.
