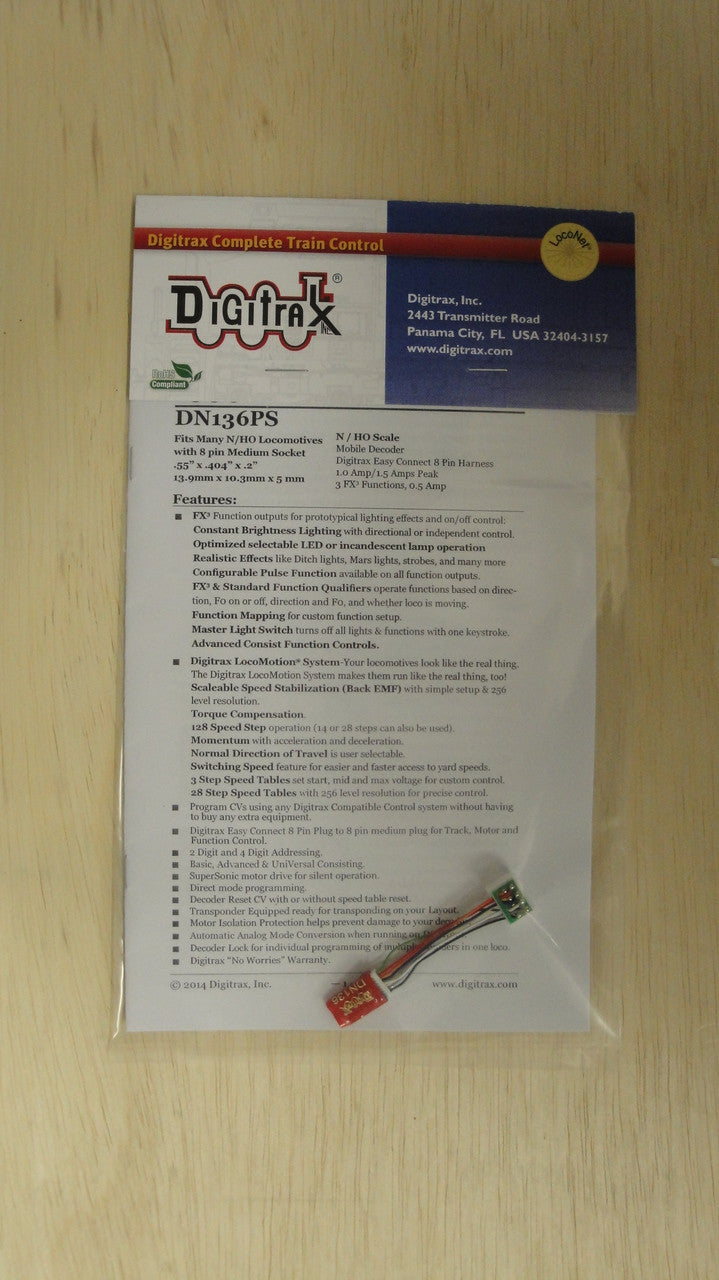

DN136PS Digitrax / Motor/Function Decoder (Scale = ALL) Part # 245-DN136PS

The Digitrax DN136PS is a top - notch motor and function decoder that fits a wide range of N/HO locomotives with an 8 - pin medium socket. It's suitable for all scales, offering great versatility. ### Physical Attributes - Compact size: 0.55” x 0.404” x 0.2” (13.9mm x 10.3mm x 5 mm) - Comes with a Digitrax Easy Connect 8 - pin harness for easy installation. ### Electrical Specifications - Motor current rating: 1.0 Amp with a 1.5 - Amp peak. - Function current rating: 0.5 Amp for all 3 FX3 function outputs. ### Function Features - Provides realistic lighting effects like ditch lights, Mars lights, and strobes. - Allows for constant brightness lighting with directional or independent control. - Offers optimized selectable LED or incandescent lamp operation. - Has configurable pulse functions on all outputs. - Enables function mapping for custom setups. - Comes with a master light switch to turn off all lights and functions at once. - Features advanced consist function controls. ### Performance Enhancements - Utilizes the Digitrax LocoMotion® System for realistic locomotive running. - Has scaleable speed stabilization (Back EMF) with simple setup and 256 - level resolution. - Offers torque compensation. - Operates in 128 speed steps (14 or 28 steps are also available). - Provides momentum with acceleration and deceleration. - Allows users to select the normal direction of travel. - Has a switching speed feature for yard operation. - Comes with 3 - step and 28 - step speed tables for custom and precise control. ### Other Advantages - Program CVs using any Digitrax - compatible control system without extra equipment. - Supports 2 - digit and 4 - digit addressing. - Offers basic, advanced, and universal consisting. - Uses a SuperSonic motor drive for silent operation. - Allows direct - mode programming. - Has a decoder reset CV with or without speed - table reset. - Is transponder - equipped for layout transponding. - Features motor isolation protection to prevent decoder damage. - Automatically converts to analog mode on DC layouts. - Comes with a decoder lock for individual programming of multiple decoders in one loco. - Backed by the Digitrax “No Worries” Warranty.

Using the Digitrax DN136PS decoder is a breeze. First, make sure your N/HO locomotive has an 8 - pin medium socket. Then, connect the decoder using the Digitrax Easy Connect 8 - pin harness. You can use any Digitrax - compatible control system to program the CVs without buying extra equipment. When setting up, you can choose from different speed steps and speed tables according to your needs. For lighting effects, select the desired functions through the function mapping feature. Here are some important notes. Avoid overloading the decoder as the motor current rating is 1.0 Amp with a 1.5 - Amp peak, and the function current rating is 0.5 Amp. If you're running on a DC layout, the decoder will automatically convert to analog mode, but keep in mind this may affect some functions. For maintenance, keep the decoder clean and dry. Check the connections regularly to ensure they are secure. If you need to reset the decoder, you can use the decoder reset CV with or without resetting the speed table. And don't forget, this decoder comes with the Digitrax “No Worries” Warranty, so you can have peace of mind while using it.
